Maria HF.31 Fishing Ewer 1880 by Dubz - Dusek Ship Kits - 1:72
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#31
10-08-2020, 02:13 PM
Today I tried a discreet weathering of some parts to break the colors, especially the white is imo sometimes "too white" ... I for myself are pleased with the result Smile

[Image: Maria_HF31_BuildLog_0545.jpg]

[Image: Maria_HF31_BuildLog_0546.jpg]

[Image: Maria_HF31_BuildLog_0547.jpg]

[Image: Maria_HF31_BuildLog_0548.jpg]

[Image: Maria_HF31_BuildLog_0549.jpg]


In the mood of some impressions Wink

[Image: Maria_HF31_BuildLog_0551.jpg]

[Image: Maria_HF31_BuildLog_0553.jpg]

[Image: Maria_HF31_BuildLog_0554.jpg]


Maria as of today Smile

[Image: Maria_HF31_BuildLog_0558.jpg]

[Image: Maria_HF31_BuildLog_0556.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#32
10-08-2020, 02:13 PM

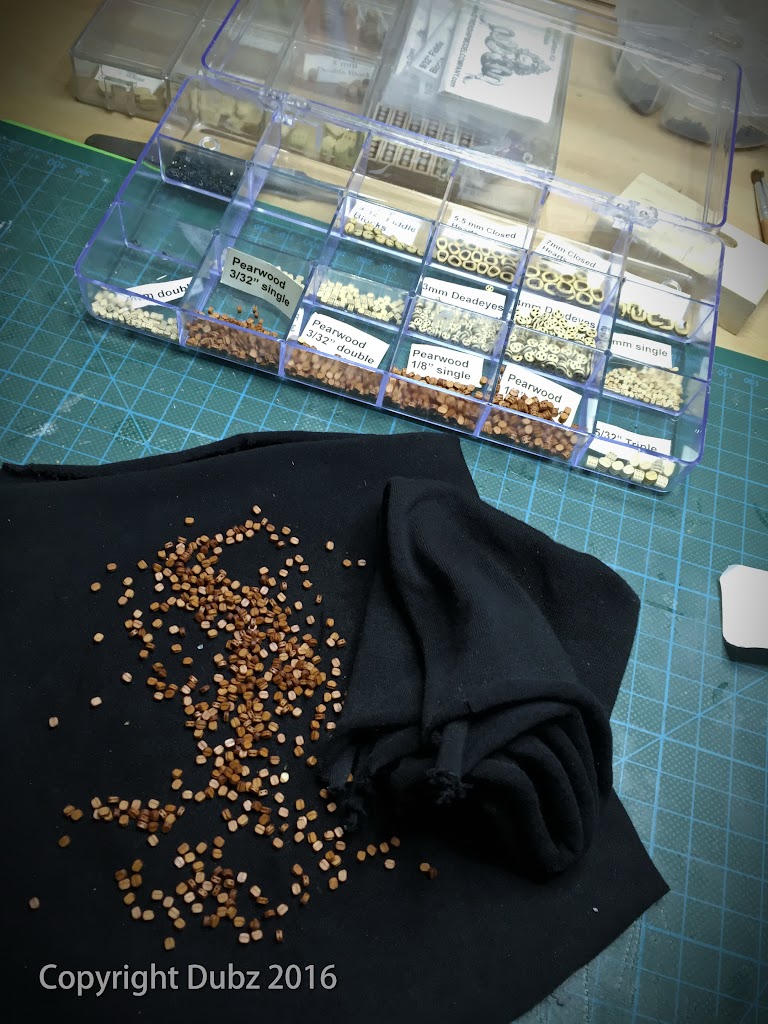

Preparing rigging stuff for Maria and Syren.

A lot of blocks to oil ... a lot of hooks to bend ...

[Image: USS-Syren_Baubericht_1413.jpg]

[Image: USS-Syren_Baubericht_1414.jpg]

[Image: USS-Syren_Baubericht_1415.jpg]

Mass-Serving rope ...

0.25mm

[Image: USS-Syren_Baubericht_1420.jpg]

[Image: USS-Syren_Baubericht_1419.jpg]

Relearnig doing blocks ...

[Image: USS-Syren_Baubericht_1422.jpg]

Some ropework ...

[Image: Maria_HF31_BuildLog_0560.jpg]

[Image: Maria_HF31_BuildLog_0561.jpg]

[Image: Maria_HF31_BuildLog_0562.jpg]

[Image: Maria_HF31_BuildLog_0563.jpg]

Rigging the tiller.

[Image: Maria_HF31_BuildLog_0564.jpg]

[Image: Maria_HF31_BuildLog_0565.jpg]

[Image: Maria_HF31_BuildLog_0566.jpg]

[Image: Maria_HF31_BuildLog_0567.jpg]


What I want tor try an learn with Maria is how to let the rope look natural, I mean not the rope itselfs the way it lays it flows ... a very difficult task imo. In 1:72 everything is so small ... btw, it's fun when working on the Sherbourne or Syren, everything feels sooo big Big Grin

[Image: Maria_HF31_BuildLog_0568.jpg]

[Image: Maria_HF31_BuildLog_0569.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#33
10-08-2020, 02:14 PM
Mast and spars woodwork almost done ...

[Image: Maria_HF31_BuildLog_0571.jpg]

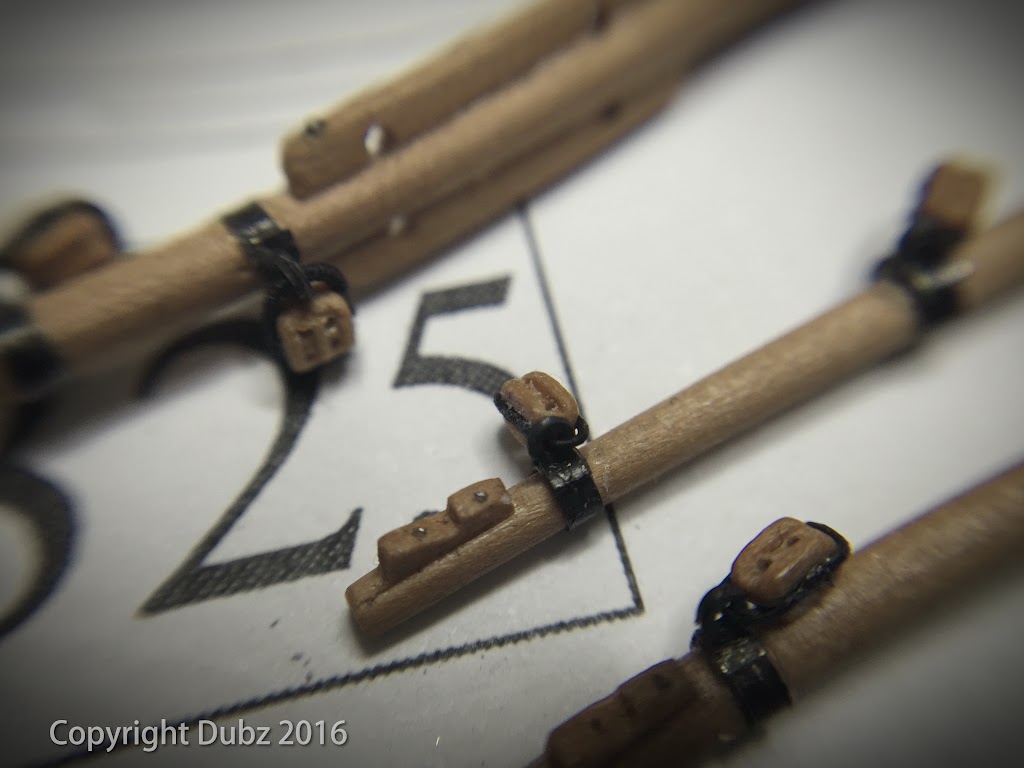

Adding more details. The blocks are 2mm and to do the blackend brass bands with 2 holes for the eyebolt is a pain in the *** .... Tongue

[Image: Maria_HF31_BuildLog_0572.jpg]

[Image: Maria_HF31_BuildLog_0573.jpg]

[Image: Maria_HF31_BuildLog_0574.jpg]

[Image: Maria_HF31_BuildLog_0575.jpg]


Today I finished (I hope ... hehe ...) the metalwork on the spars.

[Image: Maria_HF31_BuildLog_0576.jpg]

[Image: Maria_HF31_BuildLog_0577.jpg]

[Image: Maria_HF31_BuildLog_0578.jpg]

Macro is cruel sometimes ... Smile As I am a bit paranoic about glue every brass band is pinned with a micro rivet (or an eyebolt).

[Image: Maria_HF31_BuildLog_0579.jpg]

[Image: Maria_HF31_BuildLog_0580.jpg]


Progress is very slow atm. A lot of scale problems and time needed to find appropriate solutions. Doing 1mm rings is one thing handle them and "close" them another ...

[Image: Maria_HF31_BuildLog_0581.jpg]

[Image: Maria_HF31_BuildLog_0582.jpg]

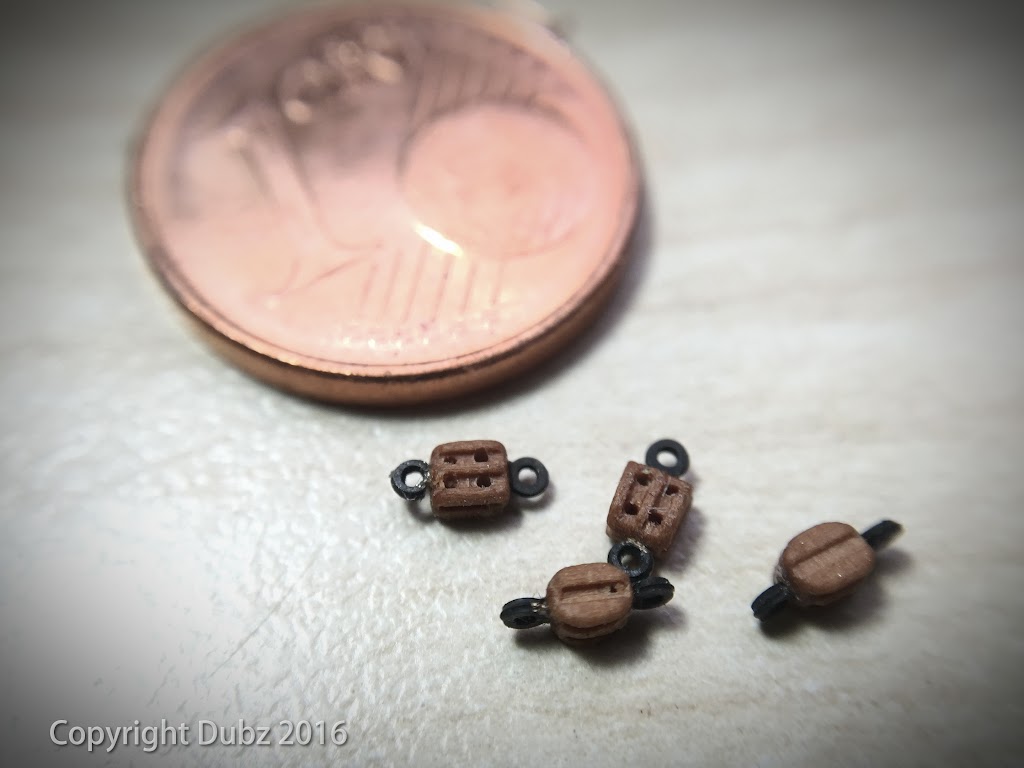

Adding 2 eyebolts in a 2 mm block is kinda challenge btw ... hmpf ...

[Image: Maria_HF31_BuildLog_0583.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#34
10-08-2020, 02:14 PM
A rough test with the sails Smile Love it!

[Image: a7139a9dbe85db333207d09f9e1940d8.jpg]

[Image: 1d0d946e6c0250f746bed08e0f47a8fd.jpg]

[Image: c0ee39e4516cb079858bc7a4be695f92.jpg]

[Image: e502627abae7f0639fbc883c309b25ab.jpg]

[Image: b41913052ea175dc95c99b65211aed2f.jpg]


First two sails and spars "connected". Done with Morope 0.1mm rope.

[Image: fb26884c791d559f219df37182c6ca26.jpg]

[Image: 44ed5f9dd111cbe7715703a3cbc87727.jpg]

[Image: f1ba2d5b1fae9677757f457d80c670f0.jpg]

[Image: 3c780fa6137ee0f0802a60037c7318df.jpg]

[Image: 38464071daffc8ddf39a50bd8367e676.jpg]

[Image: d9e7fcfb07894b6354ba42de70341986.jpg]

[Image: da6934e02dfaaf79a94b64c1e37389cc.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#35
10-08-2020, 02:14 PM
Another update Wink

[Image: 5d509ba81d1399a4698dc7606dfe8e0c.jpg]

[Image: 99bbe9ba361189f2a4d99d1be3d6f016.jpg]

[Image: 1757fe1e53c21b62d0d4c056f9f3f6ca.jpg]

[Image: 611658f2d5ade35ada0fdc1fd4e0e5b7.jpg]

[Image: 785d56e159f1ce8b6aa76662f3ac0467.jpg]

[Image: 6e90d322e561e5ccc3ca761eadc02b33.jpg]

[Image: d1b19175bdf01ad0b1912a0bd6befd04.jpg]

[Image: e901e875a55b6c64634b7465ec6f37b7.jpg]


Small Update (even it took a good while to build it ... hehe)

My eyes hurt ... so damn small ...

[Image: 920636c29c4903e784b777cbfc2324ce.jpg]

[Image: bfeb706546c47431e71d4a72a6c3a113.jpg]

[Image: c2d66ca9753c61dfc11ed1218c706200.jpg]

[Image: 81205f129f9d2b2c7a7ed79f56917960.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#36
10-08-2020, 02:14 PM
The next Sail.

[Image: 9a9ecdb5a0485e6837e1a5271255805b.jpg]

[Image: a33d167faf51f4da5beffc22b0605ae1.jpg]

[Image: 8d6ec6fdab22a0c44ccc906ffda4f586.jpg]

[Image: 559256e0df5ba92c7157d71380da0598.jpg]

[Image: 9d2198c469d1d477cefe7d7e82b052c7.jpg]

[Image: 1c49da56d0d0236f79e15e8d84f278a4.jpg]

[Image: e43885a4c3ba6d7c7906d96b080affd7.jpg]

[Image: cb8412ba05da1e604c8e7b7ea93095c7.jpg]

[Image: 13614c2487daf426c312c5911f565fae.jpg]

[Image: da03367fd469c995e9bd8905c28fe442.jpg]


Today the parrels were made. I did them with FIMO, burned them and then drilled the holes. Damn small in 1:72 but imo it is macro proofed Smile

[Image: 4497ad1c8615ea6b458d5b9e3411c3c8.jpg]

[Image: 8611e3f73261c90aca8fd8345a2af94f.jpg]

[Image: fafc6487f2c3b1c3782b0f16380405dc.jpg]

[Image: 248a668a5d0f2caa5416d87973c4ee38.jpg]

[Image: 0afb17e743ca535142278ad18c065073.jpg]

[Image: bcd29df91aadaed9d47908226890672b.jpg]

[Image: 20d88978d2559595ca6dcbaec1a18dad.jpg]

[Image: d6105f486c4c9745c11428a1f66f3e40.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#37
10-08-2020, 02:15 PM
With Maria herself, there hasn't been much done. But in the last days I have at least come to build a case for the small one :-)

[Image: 983f0fad8a07255bf26845c9bd6f1604.jpg]

[Image: d5e2050a3fa84980fc25582043811958.jpg]

[Image: 416308a1144b96795dffcee464ea2120.jpg]

[Image: a1bca64da5f8e81cb1a2359b8e30e82f.jpg]

[Image: f187f20ecac9840f545a4998ab498015.jpg]

[Image: 80e03b4f3eacba16eba8408036ba5b74.jpg]

[Image: 93ce3053e28296ce3769dd9bff79ca97.jpg]

[Image: a84dc9788361866d218ee5acd2f30ba0.jpg]

[Image: b45669ce1fae4e09d9db060ec3224775.jpg]

[Image: 3bf45c73ab097706b26b32a659415dd7.jpg]

[Image: b380b3e57b0a4ed2156771a02a5c4dfe.jpg]

[Image: 367dd1cfbf455b4547aa2509dd80e259.jpg]

[Image: 07c1aeabd7357ea2a6c6cd7cdd5f4ef6.jpg]

[Image: 5195931985ad16a5021cad7a94776d29.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#38
10-08-2020, 02:15 PM
Restarting on Maria :-)

[Image: 0f3e833ec357e98ae6c63b9f602cc425.jpg]

[Image: 6bf4dfce8ce810524f76f78abb2bcf8b.jpg]

[Image: 8a19913da81b14dcfccf55a6f41ee31b.jpg]


Lot of relearning .... work in progress. I use morope here for the shrouds as it is easier to adjust them. As Maria was a "working" ship I will use a mix of rope

[Image: d95ee78dcce024dc717265d7aa7717dc.jpg]

[Image: ac6075a2431a39118425a4bc6a122ec5.jpg]

[Image: 82962a05c8e8941a290ca2dc2a0b0309.jpg]

[Image: 3e2892c2a3e56b9fb408bba5c2f536e2.jpg]


Some more progress on the mainmast shrouds :-)

[Image: 503cdc11257244e5848591a4db051eb7.jpg]

[Image: 6dcebb4e46dfceb37734dcc30d3acae6.jpg]

[Image: f3b8c3556f61c46082fe638a578fa89e.JPG]

[Image: 19c514c7c4f85e887052c81fda097cdc.jpg]

[Image: 679759134d60dbb8b42e3d4e9c01b254.jpg]

[Image: a831ebbbbd2528f7ec63d3d9f116f6e0.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#39
10-08-2020, 02:15 PM
The shrouds needed to be tarred ... I used Edding for that ...

[Image: d0d6380afd10799085e7f77f3c443396.jpg]

[Image: 36b54eec30a3448d5ba03e25d5c5d6eb.jpg]

[Image: b7f4ce92b38037ce114fad11f245d2f6.jpg]

[Image: f440128ca65eed73768e0c4db6879150.jpg]

[Image: 59217e451e5f1f5bf18682c080c11c36.jpg]

[Image: 8a5a5ade8fba7ed259590b6c04904a01.jpg]


Some more progress with the shrouds.

[Image: 13af80c79c13dc0fd19c92e09afd9197.jpg]

[Image: 5128355746326d9b152885aa58747f9c.jpg]


Started the forestay. Shrouds and Stay are made with wire rope.

[Image: ea5d44842b98bd6931a6f542d8e8df1d.jpg]

[Image: de5e6813636da14a325b056e42f5c2d8.jpg]

[Image: 948d3d2dee63b055b4d36db4d150601d.jpg]

[Image: 15e787e59bc44719b8f3ad8079181de5.jpg]

[Image: 4c6992e578b6dfd2c5566d95044ee292.jpg]

[Image: 00378800dafd8b942142e61eacf30bd3.jpg]

[Image: 29ff795d12f0e41a55d61826d2e01440.jpg]

[Image: 89c91d43a9a8c4c699d293e7ff2b6b22.jpg]

cheers,

Dirk

  •
Reply
Dubz Online
Administrator
*******
Posts: 508
Threads: 54
Likes Received: 277 in 239 posts
Likes Given: 88
Joined: Aug 2020
Reputation: 0
#40
10-08-2020, 02:16 PM
Small but time consuming details ....

[Image: 5e0aa508e58e6af47e979204706d8f50.jpg]

[Image: bcb4815f991a7854f3ea9466191eb681.jpg]

[Image: f8088f4aac832b7001e88c28d328e866.jpg]

[Image: 4e3d038e779f41cfa261c53959b605d9.jpg]

[Image: 6fcd5bbd891c2879cc2f2aa2172064fc.jpg]

[Image: bb62814d669bda1b8c48f47a8dcea0e3.jpg]


Some eyebolts were missing on the masts ... tricky to drill them :-P

[Image: f08afb84fe3cbd1013d6b3e4759f1214.jpg]

[Image: f3a0ef9731671663efa60f0d0d3e328f.jpg]


And another detail :-)

[Image: 1b0d5ed2cb01540ef81ffac128b08bce.jpg]

[Image: 9369c34186c77576115f6decb8f4e87f.jpg]

[Image: ee2fb952ef013938a008b4944c620781.jpg]

cheers,

Dirk

  •
Reply
